The Two-piece Female Threaded Platform Ball Valve is an internal threaded platform ball valve composed of a single valve body segment and a side cover piece. During the installation of the two-piece ball valve, customers are not permitted to disassemble the valve body and side cover by themselves, nor are they allowed to weld them directly. This ball valve can be directly fitted with a pneumatic actuator or an electric actuator to convert it into a pneumatic ball valve or an electric ball valve, enabling automated control.

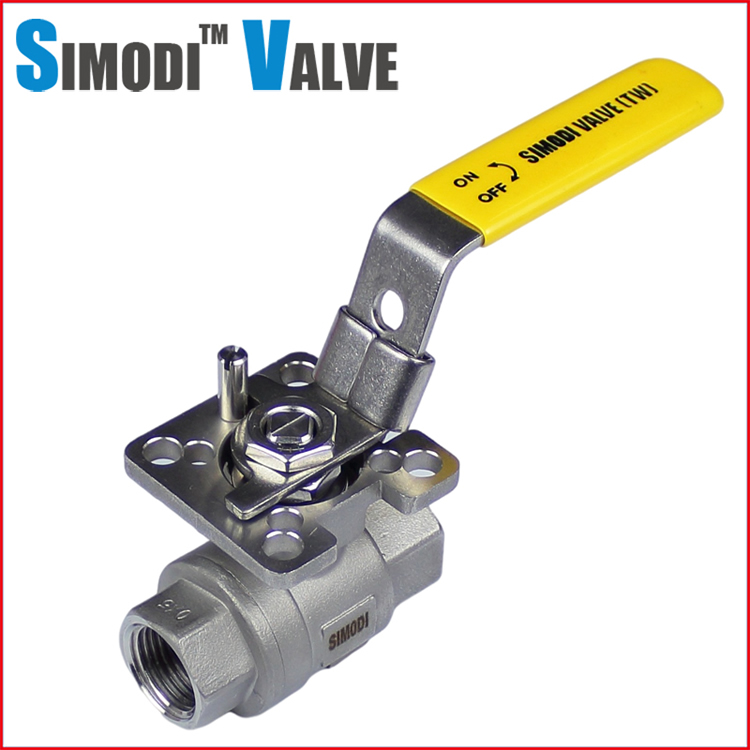

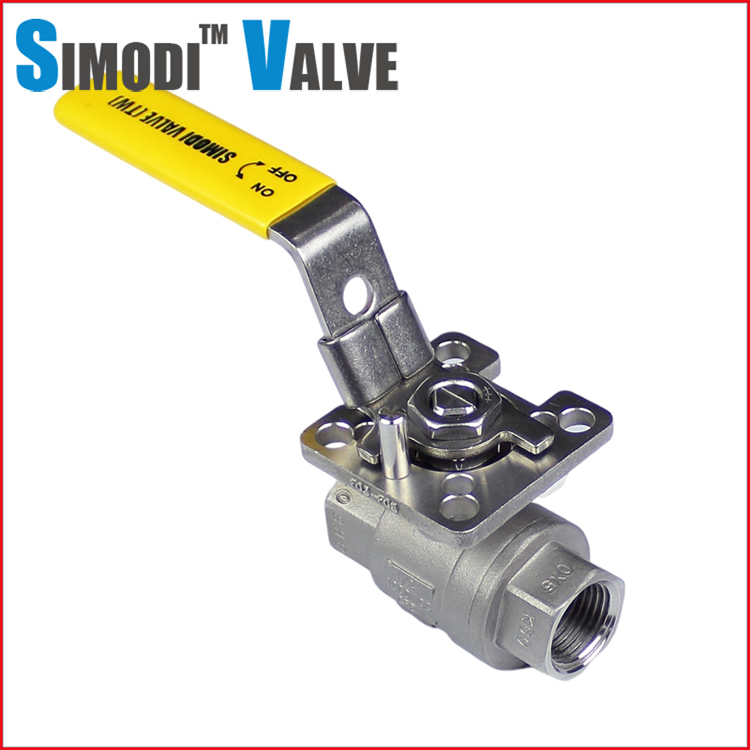

BVB-121DT Two-piece High Platform Ball Valve

SPECIFICATIONS
* Working Pressure: 1/4”~2”1000PSI WOG 2-1/2”~3”800PSI WOG
* Temperature Range: -15℃～150℃(PTFE)
*Blow-Out-Proof Stem Design
*Investment Casting
*Solution Treatment
* Blow-Out Proof Stem Design, Antistatic Device
* ISO5211 Direct-Mounting of Actuators of Valves Design
* End Types: Female Threaded
*Full port

Selection Considerations: Please provide detailed operating condition parameters, including the type of medium (whether it contains impurities), design temperature, design pressure, and other relevant details, to assist in the valve selection process.
